Product name

HPA Series Fully Automatic Horizontal Baler

Product introduction

Suitable for baling and automatic bundling of loose materials such as waste paper (cardboard boxes, OCC, newsprint, etc.), waste plastics (PET bottles, turnover boxes, plastic films, etc.), straw, etc. Applicable to national circular economy parks, national urban mineral demonstration bases, agriculture, papermaking, etc.

Product features

1. PLC control, touch operation, window monitoring; the length of the bale can be set, automatic bundling, and increased baling speed.
2. Floating necking design, automatic distribution of pressure on all four sides; the feeding port is equipped with a dispersed shear knife, with high shearing efficiency.
HPA Series Fully Automatic Horizontal Baler

Technical parameter table

Model



Main cylinder pressure (ton)

Feeding port size (L×W/mm)



Bale size (WxH/mm)



Bale weight - waste paper box (kg)



Motor (kw)



Conveyor belt width (mm)



HPA50

50

900x700

700x700

200-280

22


HPA80C

80

1450x1100

1100x720

400-530

45+7.5

1000

HPA100B

100

1600x1000

1000x1100

580-950

55+7.5

1200

HPA125A

125

2200x1100

1100x1100

720-1150

74+7.5

1600

HPA125B

125

2200x1100

1100x1250

790-1250

74+7.5

1600

HPA160A

160

2200x1100

1100x1100

760-1280

90+7.5

1600

HPA160B

160

2200x1100

1100x1250

830-1400

90+7.5

1600

HPA-200B

200

2200x1100

1100x1251

860-1450

120

1600

HPA-250A

200

2200×1100

1100×1250

890-1500

117.5+7.5

1600

HPA-250B

225

2200×1100

1100×1250

890-1500

150+7.5

1600


Operation process

Operation process
Products

RelatedProducts

HPM-200S Horizontal Baler

HPM-200S Horizontal Baler

More
HPM-250S III Servo Horizontal Baler

HPM-250S III Servo Horizontal Baler

More

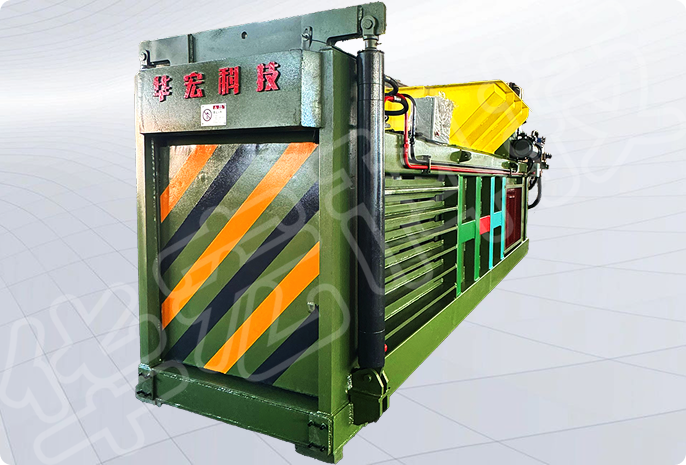

HPM Series Semi-Automatic Horizontal Baler
